The mechanism of mucosal fold formation



Although I am primarily concerned with the muscle of the esophagus, some of the things to be proved will be derived from the fold pattern of the organ. A correct understanding of fold formation and its significance is, therefore, essential.

Historical background

Click for larger image
Click image for larger version


Since the early years of radiology, the "autoplastic" theory of mucosal folds formation has had the status of dogma. This theory was enunciated by Forssell,(1) the founder and for many years editor of Acta Radiologica, and given currency in the 1940s in Templeton's(2)

influential textbook. Forssell was impressed that mucosal folds about a cube of meat in a cadaver stomach seemed to grip the food as though to manipulate it and theorized that mucosal folds came about by contraction of the muscularis mucosae.

Forsell's theory was widely accepted and it would be fair to say that it is still unchallenged. As recently as 1983, Eastwood(3)

undoubtedly stated the conventional wisdom when he wrote: "The longitudinal folds in the lower esophagus are due to contraction of the muscularis mucosae." On the other hand, Levine and Laufer(4) (1992) use these fibers to explain transverse folds in the esophagus. Olmstad(5),(6) echos these views in 1994.

Unfortunately, the autoplastic theory is a hypothesis that leads nowhere. If the theory is correct, no conclusions could be drawn from the fold patterns of the alimentary tract. Fold thickening or thinning could only be interpreted as variations in the activity of the m. mucosae. An increase or decrease in the number of folds would have no particular significance other than suggesting that a different type of m. mucosal activity was present. Fold direction becomes meaningless.(7)

To be sure, radiologists pay little more than lip service to the theory, drawing diagnostic inferences from fold patterns as their collective experience indicates. Nevertheless, the discrepancy between theory and practice creates difficulties.

These difficulties are not ameliorated by endoscopists whose methods do not refute the autoplastic theory. With the organ distended, the enlarged folds seen by radiologists often were not confirmed by the endoscopist. This could not help but be embarrassing and inevitably led radiologists to distrust their own findings and even refuse to draw inferences from fold size or numbers.

This reticence was not lost on the radiological audience. A professor of medicine(8), speaking as one of a "think tank" of experts on the esophagogastric junction could say without contradiction by the other members of the symposium that ". . . . neither [gastritis or esophagitis] is diagnosable radiologically."

Endoscopy also underdiagnoses. A recent study(9) (the endoscopists were unaware it was being done) showed that although endoscopy missed only 17% of histologically verified instances of duodenitis, 68% of the antral gastritis was not diagnosed by inspection. The fact that the stomach is distended for the procedure while the duodenum, presenting no distal barrier to the escape of gas, is less easily distended, explains the different percentages: when an organ is distended, the folds disappear.

Flaws in the autoplastic theory

Click for larger image
Click image for larger version

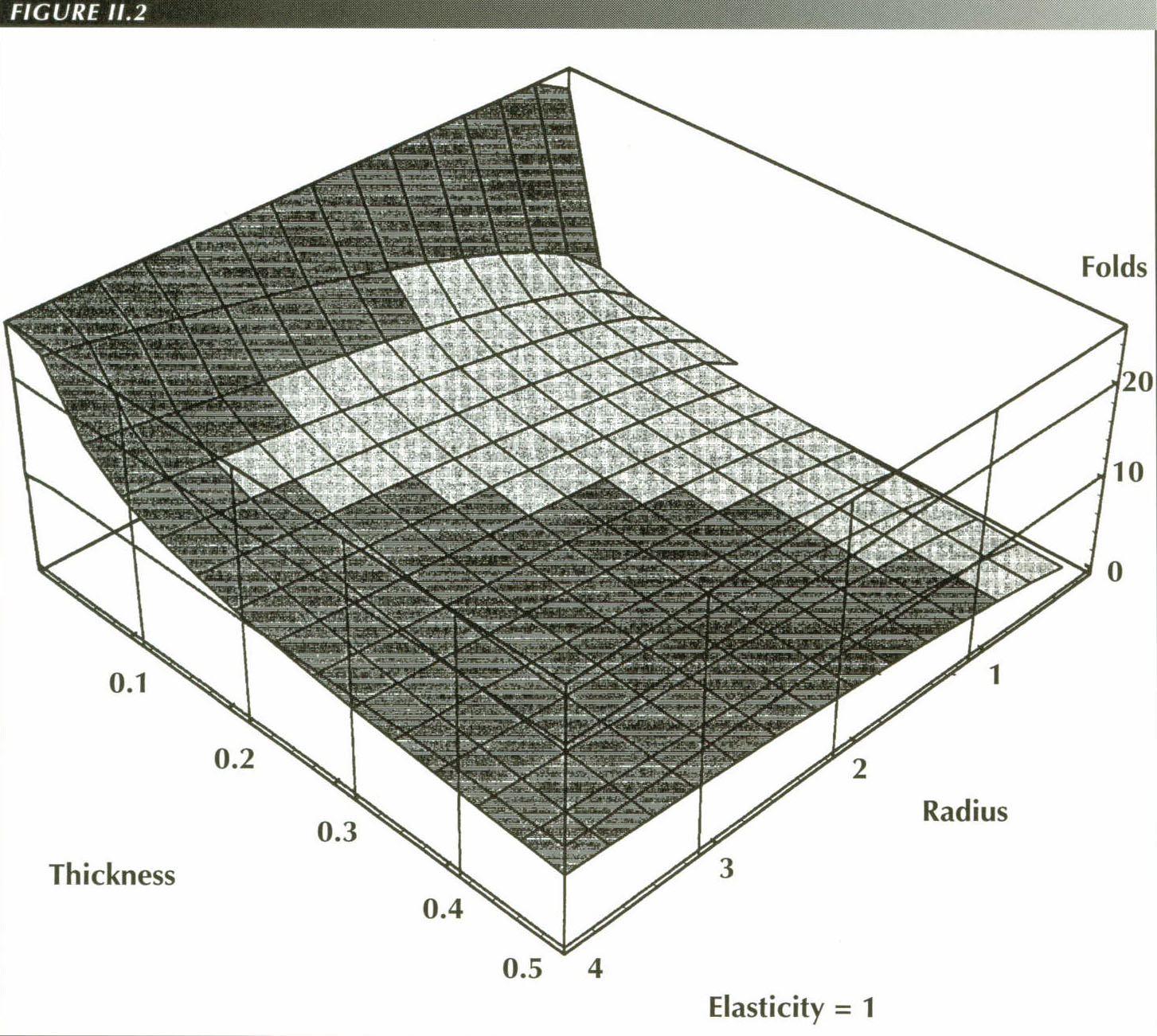

A 3-D Mathematica plot of the fold formula. Without any assumptions, the surface accurately predicts the number of folds that will form when a hollow organ of radius “r” and mucosal thickness “t” contracts. In this plot the elasticity “E” is 1. The surface is little altered overall by smaller values of “E”, but does degenerate as mucosal thickness approaches the radius of the organ
If the m. mucosae caused folds, it could only produce them by contracting. If it contracted en masse, this could conceivably cause an arching of the mucosa above and at right angles to the long axis of the contracting cells just as tightening a bowstring arches the bow. As it turns out, in the esophagus the cells of the muscularis mucosae are aligned exclusively in the longitudinal direction.(10),(11)

The autoplastic theory, therefore, predicts that esophageal folds will be exclusively transverse! In fact, of course, esophageal folds are longitudinal - exactly the opposite of the prediction. If, in unusual circumstances, a transverse fold does form, we are unable to explain why the usual constraints are in abeyance.

When the stomachs of cats were surgically removed and immediately frozen in liquid nitrogen, sections of the folds showed that the smooth muscle layer of the m. mucosae simply followed the fold parallel to its surface instead of extending directly across the base of the fold bowstring fashion as would be predicted by the autoplastic theory.

One would also have to consider the possibility that folds could form in a way analogous to the mechanism by which an inchworm folds its body by muscular contraction. However, this analogy will not hold: the inchworm has muscle layers on opposite sides of a body 4-6 mm thick. Because the m. mucosae cells are separated from each other by microns, there is no lever arm that could exert a folding force.

Finally, it is hardly reasonable to attribute fold formation to a microscopic muscle layer when there are macroscopic muscle layers that have not been taken into account.

A demonstration that mucosal folds are caused, not by the muscularis mucosae, but by the muscularis propria has immediate practical consequences. It brings theory into accord with observation. It makes appearances intelligible. It offers predictions that can be verified. It aids in the analysis of new observations. It leads to rejection of the ad hoc assumptions that must be used presently to effect some sort of concordance between autoplastic dogma and the way things look - assumptions that tend to take on a life of their own. Best of all, a correct theory makes gastrointestinal radiology less of an enigma to the student.

A new theory of fold formation

Click for larger image
Click image for larger version

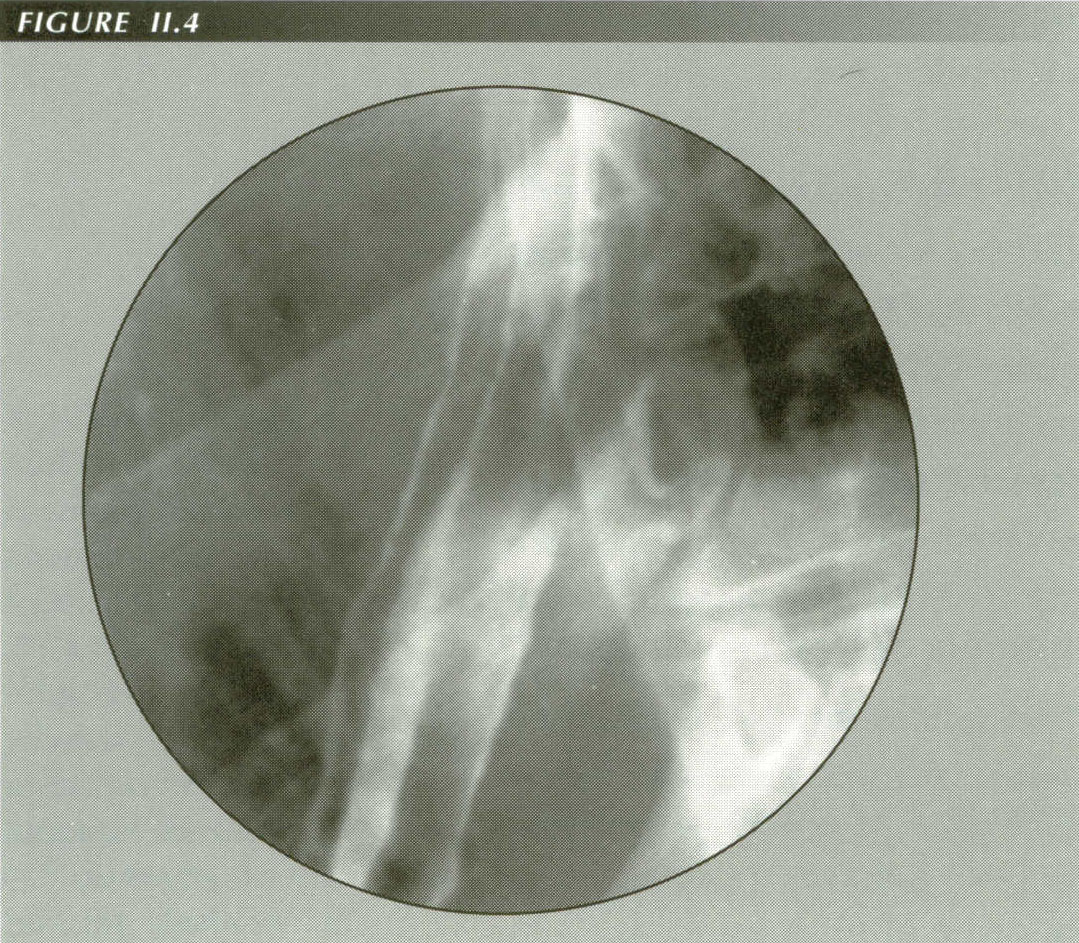

Grade 3 Esophagitis
The proof that the circular muscle of the gut is the cause of longitudinal folds arises out of the circumstance that when a hollow organ contracts the cross sectional area of its lumen decreases to zero. Because the mucosa is not perfectly elastic, its circumferential length cannot decrease to zero. The excess length is taken up by redundant fold formation.

This inescapable fact allows us to set up equations that can be solved analytically to yield a formula that predicts the number of folds that will form with a lumen-obliterating contraction. The derivation is detailed in the Appendix. For practical purposes, the following simplified form of the result is adequate:

Where T = the thickness of the mucosa, R = the radius of the organ and E = a decimal fraction for elasticity. Both T and R are measured while the circular muscle is relaxed.

From the formula, several conclusions can be drawn:

The need to take up the free mucosal surface is both a necessary and sufficient cause of mucosal folds. Contraction of the muscularis mucosae is a redundant postulate. The folds would form even if the m. mucosa did not exist.

The number of folds is proportional to the resting radius. That is, the larger the organ, ceteris paribus, the more folds it should have.

Fold number is inversely proportional to the thickness of the mucosa.

Click for larger image
Click image for larger version

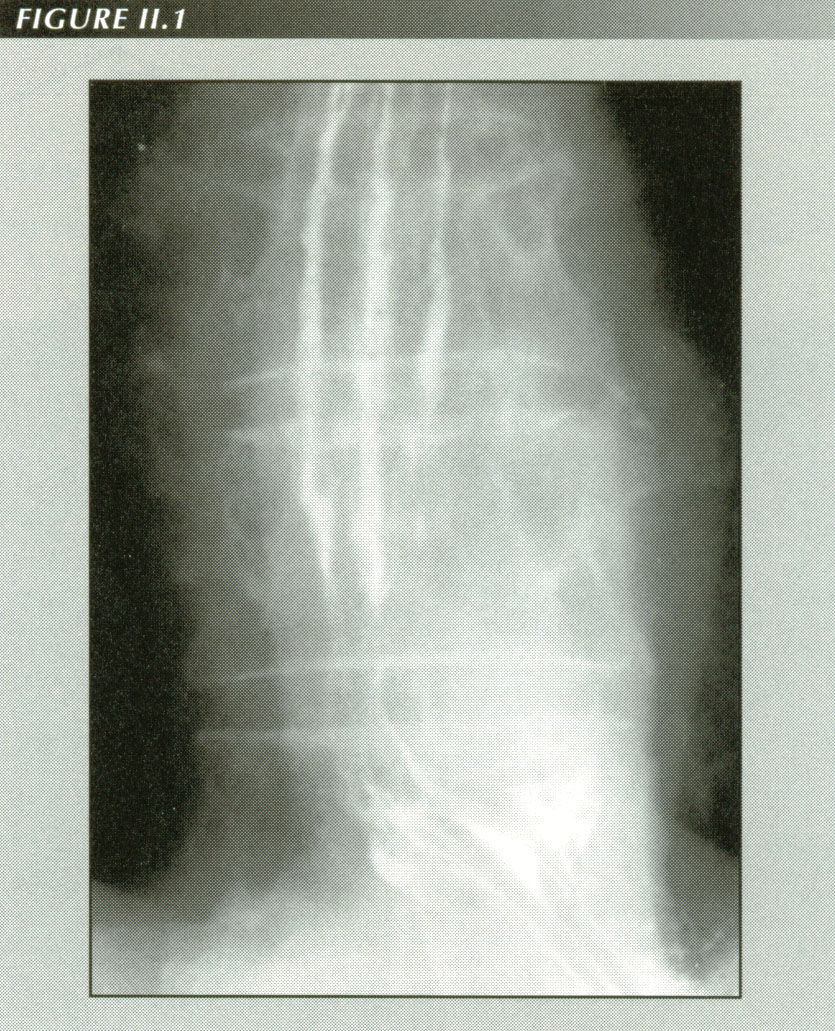

Esophageal folds: Normal folds measure 1 mm or less and one can count 5 or 6 of them they are caused by the circular muscle, not the m. mucosa that is also longitudinal. There are no transverse folds unless, for one reason or another, the esophagus can shorten with LMC
Click for larger image
Click image for larger version

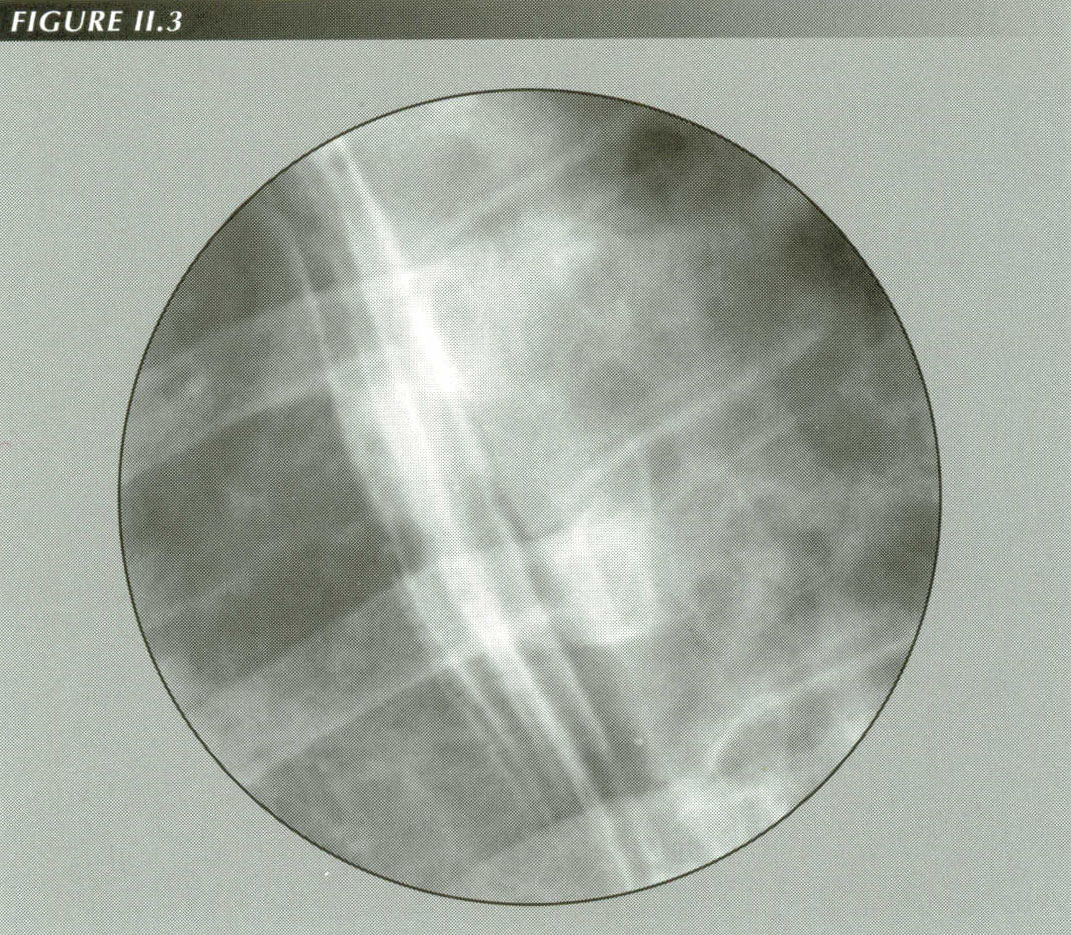

Severe esophagitis, grade iii: 2 folds occupy the entire width of the relaxed body.
Fold number is decreased by elasticity. As the elasticity is expressed as the ratio of the mucosal circumference in the contracted state to that in the relaxed state of the circular muscle, it will always be < 1. The function of the m. mucosa, which shortens the mucosa when it contracts, therefore, is to prevent folds from forming - quite the reverse of the postulate of the autoplastic theory. That is why in the esophagus, where transverse folds would inhibit transit, the fibers run longitudinally to prevent them forming.

Pathologic states that affect the thickness and elasticity of the mucosa should reduce the number of folds while increasing their thickness. There is a reciprocal relationship between fold number and fold size - obviously, the fewer the folds, the larger they must be to encompass the width of the organ. In many ways, however, it is desirable to use fold number rather than fold size diagnostically. Although counting folds is not always easy, it is a great deal easier to quantify fold number than absolute size. The great variety of imaging media affects the measured size of the folds, borders are not always definite and magnification by the divergent beam varies a good deal.

Qualitatively, the course of fold formation can be reconstructed as follows: As the gut contracts, no folds need form until the radius of the hollow organ is reduced beyond the ability of the mucosal elasticity to take up the slack. Thereafter, the surface is thrown into folds as the increasingly redundant lining membrane adjusts to the diminishing circumference of the lumen. Finally, when the tone of the contracted organ reduces the area of the lumen to zero, the maximum number of folds will be present.

Due to the fine-structure of the cellular and stromal elements of the mucosa, it does not, except under stress, depart much from a fixed configuration. When partially distended, the fold pattern is still traceable. Folds always form in the same places as the living tissue "takes a set" if the lumen is normally collapsed.

There may well be and probably are, interrelationships among the variables, but this does not affect the validity of the formula. It is likely, for example, that inflammatory disease affects both the thickness and the elasticity of the mucosa.

In deriving the formula, it was assumed that, when the circular muscle contracts, as much mucosa is squeezed into a given cross section as is squeezed out. There are rare instances where this assumption is not valid and a progressively tighter squeeze diminishes the fold size as tissue is extruded from the area of interest. In nature, folds are often compound. No attempt was made to take this into account in the derivation, yet the prediction of fold number is extremely accurate.

Clinical correlation

Having developed a new theory to account for mucosal fold formation, it is appropriate to see how well it does at explaining or predicting the familiar clinical-radiological appearances.

Click for larger image
Click image for larger version

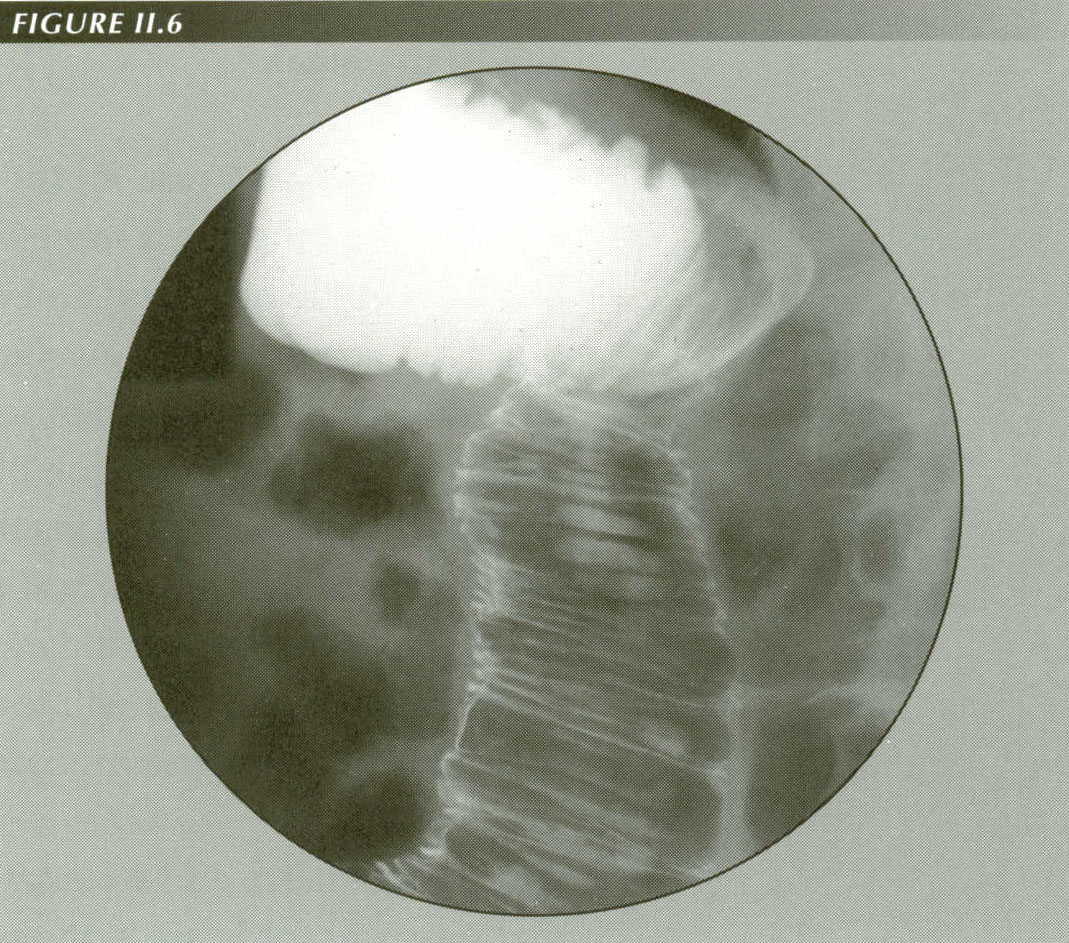

Longitudinal muscle contraction causes transmverse folds: The widely distended bowel could be due to paralasis or distention. Folds cannot form unless the lumen is obliterated. Numerous transverse folds, misnamed valvulae conniventes, prove that the LM is contracting and thus distinguish mechanical obstruction from paralytic ileus in which atony of the m. propria prevents any fold formation
In conditions that increase the thickness of the enteric mucosa the number of folds is markedly decreased - and, by the same token, their size increases. Inflammation, edema, lymphoma, and Menitrier's disease all thicken the mucosa; they are all associated with a reduction in the number and an increase in the size of the folds.

The reverse is also true. Mucosal atrophy - best visualized in the stomach - leads to many "cigarette paper" folds as would be predicted by the formula. Similar folds may occur in ulcerative colitis.

The larger organs have more folds, e.g., the stomach vs. the esophagus. Very small organs, exhibit no folds at all - the elasticity is enough to take up all the slack as the distended state is little different from the contracted state. This is also predicted analytically from the derived formula as follows:

If the thickness of the mucosa equals the radius of the organ, the numerator of the fold formula becomes zero.

therefore

That is, when the radius of the lumen is equal to the mucosal thickness, no folds will form. This is approximately true, of course, for all small tubular organs - the ureters, the eustachian tubes the fallopian tubes, the vas deferens - which, as predicted, have no longitudinal folds.

Even in the vascular system, the appearances are in accord with the prediction of our model: it predicts no folds at all! The difference in diameter between the contracted and distended states is such that elasticity can take up any redundancy that develops in diastole. Unlike the gut, the lumen of a blood vessel is not obliterated on contraction. Hence, any redundancy of the endothelium on contraction is minimal and the elasticity is enough to absorb it.

What has been said applies specifically to folds caused by contraction of the circular layer of the muscularis propria. It will be noted that the folds formed by circular muscle are orthogonal to the plane of the circular muscle fibers, i.e., are longitudinal or parallel to the long axis of the organ.

Click for larger image
Click image for larger version

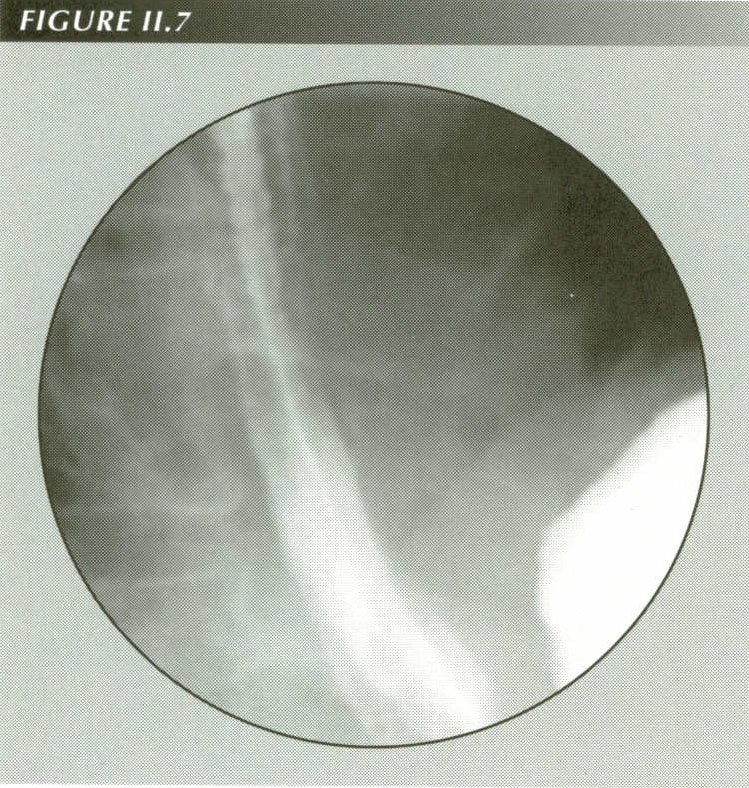

Transverse folds with eventration of the diaphragm: Although the patient did not have an elongated PEL, eventration of the left leaf of the diaphagm
The corresponding case for the longitudinal muscle of the gut is more intuitively obvious on the one hand and on the other less susceptible to algebraic formulation. In an analogous manner, it is apparent that, as contraction of the longitudinal muscle shortens the gut beyond the ability of mucosal elasticity to take up the slack, redundancy will result. This redundancy will lead to the formation of transverse mucosal folds.

We can generalize and state categorically that mucosal folds are orthogonal to the muscularis propria fibers that produce them.

In the esophagus, our present area of interest, this new theory has immediate application. The fold pattern of the esophagus supports the theory and the theory explains the pattern. Unlike the rest of the gut, the esophagus has the singularity that it normally has no slack. Because it is attached to the skull via the pharynx above and to the diaphragm below, its ability to shorten with LMC is limited. Consequently, in the normal organ, there are no transverse mucosal folds. Lacking such constraints, the circular muscle can produce longitudinal folds. If, due to a hiatus hernia, rupture of the phreno-esophageal ligament or marked kyphosis, the esophagus can shorten with LMC, then transverse folds - rings or webs - do form.

Looking at this interesting situation teleologically one can get a clue as to the function of the m. mucosae. It is appropriate to the function of the esophagus that it does not have transverse folds. No useful purpose served by the delay such folds would produce in transport through the organ. Folds such as webs and LERs produce dysphagia.

Lengthwise arrangement of submucosal muscle fibers also affects the other parameter of the fold equation, elasticity. The greater the elasticity, the fewer the folds. Smooth muscle fibers in the submucosa increase the elasticity of the mucosa and prevents fold formation. If the m. mucosae could produce transverse folds in the normal esophagus, it would do so. That the esophagus must shorten about 15% before transverse folds appear gives us a rough estimate of .85 for the numerical value of the elasticity, E, of esophageal mucosa.

An understanding of the mechanism of fold formation will be useful in the study of the esophagus because we can work the theory both ways and use the mucosal fold pattern to monitor continuously which component of the muscularis propria is contracted.

A compelling example of the utility of the theory is in the differential diagnosis of mechanical and paralytic ileus. In both conditions the small bowel is markedly dilated. This does not necessarily mean that the circular muscle is paralyzed or otherwise defective. The dilatation is occasioned by mere distention. However, the presence of transverse (Kerckring) folds in the typical "coiled spring" appearance signifies LMC. Correctly, we can infer that if the LM is contracting, the ileus is not paralytic.

Both radiologist and physiologist know when the circular muscle is contracting because it reduces the caliber of the lumen, produces longitudinal folds, compresses a balloon or raises intraluminal pressure. In sharp contrast, none of these indispensable signs is seen with LMC. The ability to identify which component layer of the muscular wall is contracting fluoroscopically is very useful, particularly with the LM of the esophagus.

SUMMARY

When a hollow organ contracts enough to obliterate its lumen, the mucosal lining becomes redundant. This redundancy is accommodated by the formation of folds. It can be shown analytically that the number of folds is a function of the resting size of the organ and the thickness and elasticity of the mucosa. The direction of the folds is orthogonal to the direction of the muscle fibers of the m. propria that cause them.

Unlike the autoplastic theory, the present analysis generates testable predictions that are in exact correspondence with the radiological findings in hollow tubular organs, particularly the gut.

Once it is realized that transverse fold formation implies LMC, a new range of physiological observations becomes possible.
