The captive bolus

AND

THE PINCHCOCK AT THE DIAPHRAGM







The "captive bolus" phenomenon(1) provides the only opportunity to observe swallowing against resistance. A detailed description of what happens during a sustained Valsalva maneuver allows radiologists to satisfy to themselves that several reported "diseases" are spurious and that pouches described as functional components of the lower esophagus are simply hiatus hernias or a normal response of structures to internal pressures.

Click for larger image
Click image for larger version

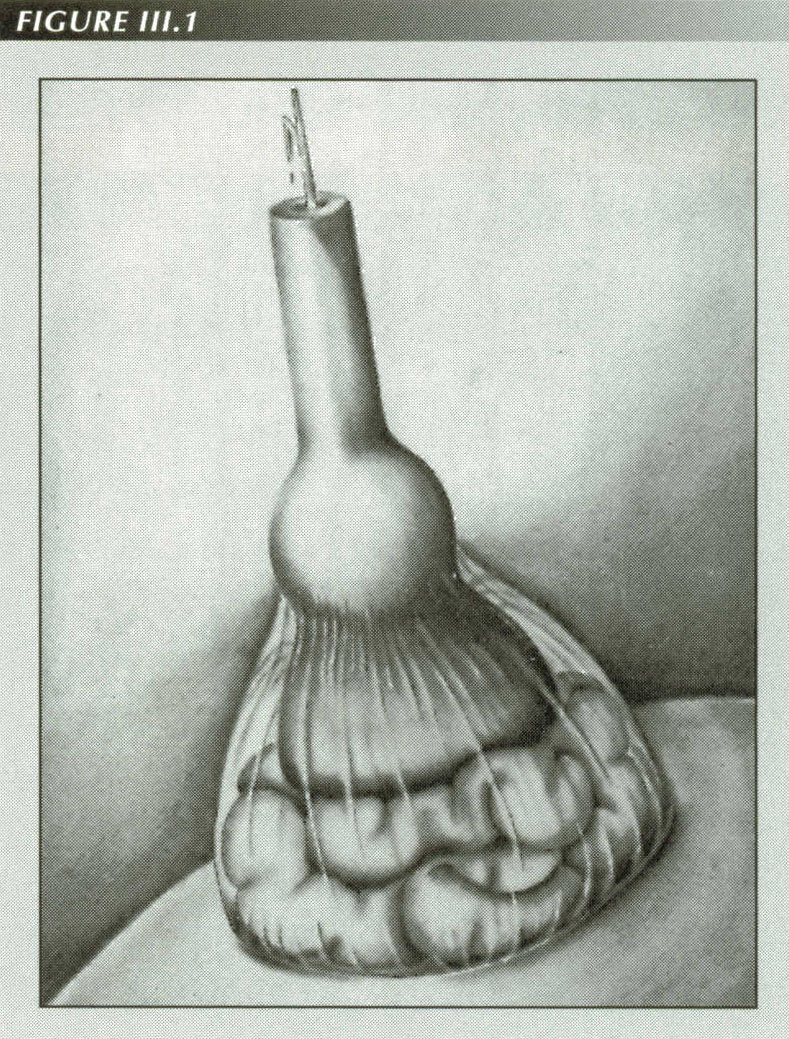

From this artist’s reconstruction of the processes detailed in Fig. III.3, A-D, the operation of the pump mechanism can be seen at a glance.

Reprinted from Stiennon, O. Arthur, AJR 99:223-32, 1967 with permission
In this way, the 2-pouch theory of esophageal competence can be disproved; both prolapse of gastric mucosa into the esophagus and prolapse of esophageal mucosa into the fundus can be eliminated as radiological diagnoses; misinterpretation of easily explained appearances at the GE junction could be avoided. Among the latter are the "Saturn ring," the "wing sign" and the "arum lily" signs.

The test explains why an "empty segment" appears at and above the diaphragm. It shows that the "diaphragmatic pinchcock" is not due to the diaphragm and does not play any part in preventing GE reflux. With this traditional underbrush cleared away, it can be seen that it is the LES and only the LES that prevents reflux of gastric contents into the esophagus.

The phenomena elicited by the test cannot be explained without the phreno-esophageal ligament (PEL). The test thus proves the existence and functional role of a structure that furnishes a key to an understanding of reflux. It clearly shows the sphincer. It reveals the swallowing act in 3-d.

This is how to do it:

In the prone (right anterior oblique) position, the patient is asked to take one normal mouthful of barium, immediately after swallowing, take a deep breath, hold it and make a maximum sustained straining effort, i.e., a Valsalva maneuver.

In a patient with a "positive" test, the barium column is pinched off at and for a variable distance above the diaphragm. This constriction is the so-called "diaphragmatic pinchcock." A peristaltic wave then forms in the proximal esophagus and advances at a uniform rate of about 4 cm/second forcing barium ahead of it until it reaches the physiologic sphincter. Peristalsis continues to the lower margin of the sphincter and stops. The sphincter remains contracted either briefly or as long as the patient can hold his breath. Trapped between the sphincter above and the "pinchcock" below is a bolus of barium. This is the captive bolus.

Experience shows that the success rate of this demonstration depends largely on the clarity, redundancy and enthusiasm with which one gives the instructions. Getting it right the first time seems important. If the patient starts straining too late and the procedure is repeated, the findings are seldom as clear-cut.

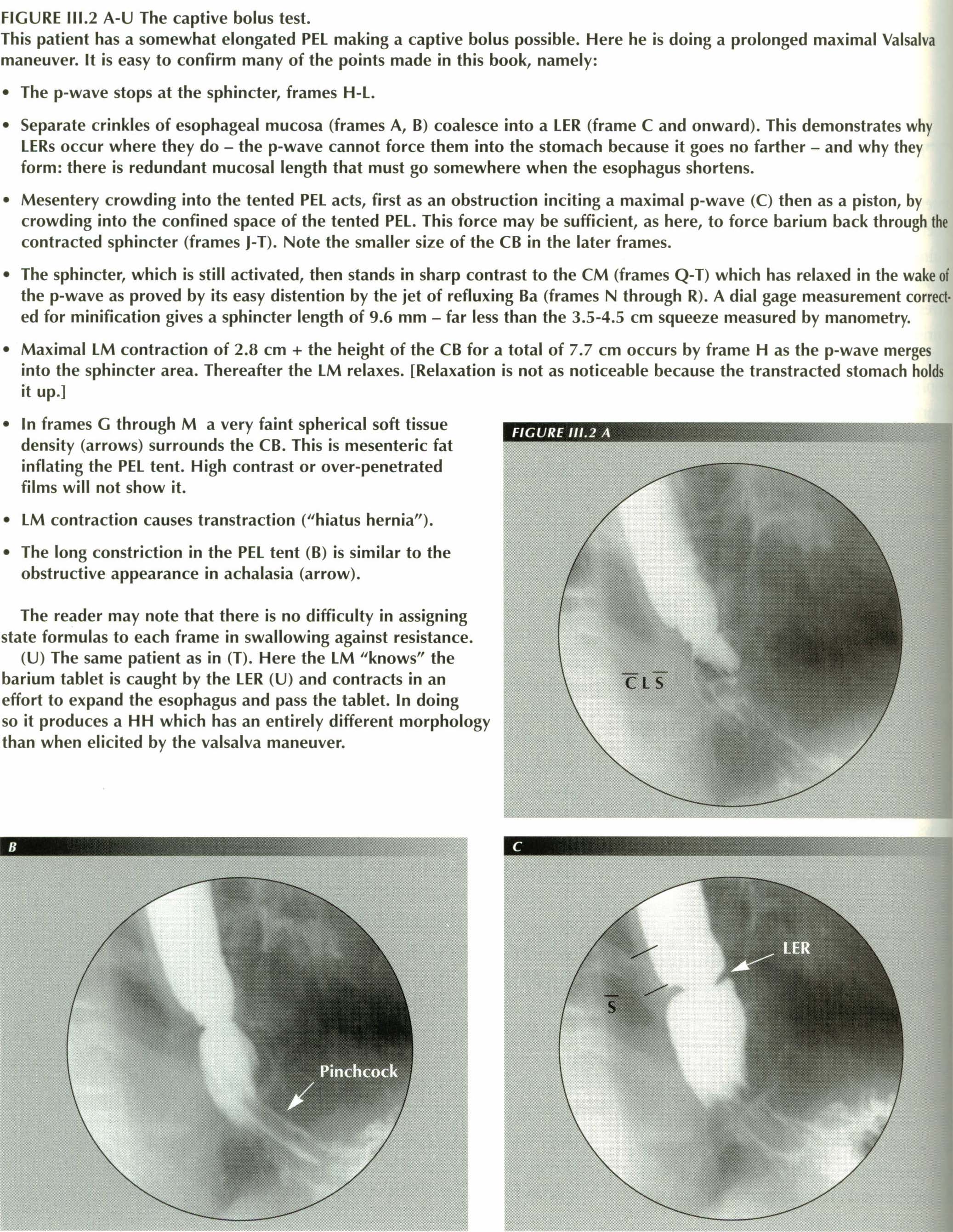

The mechanics of the captive bolus

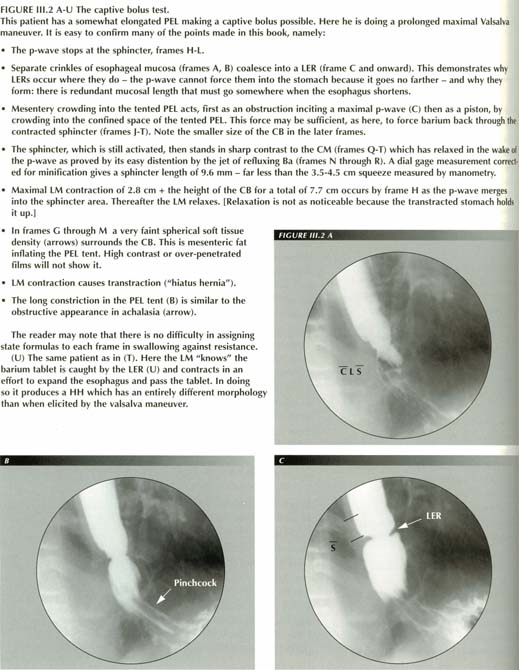

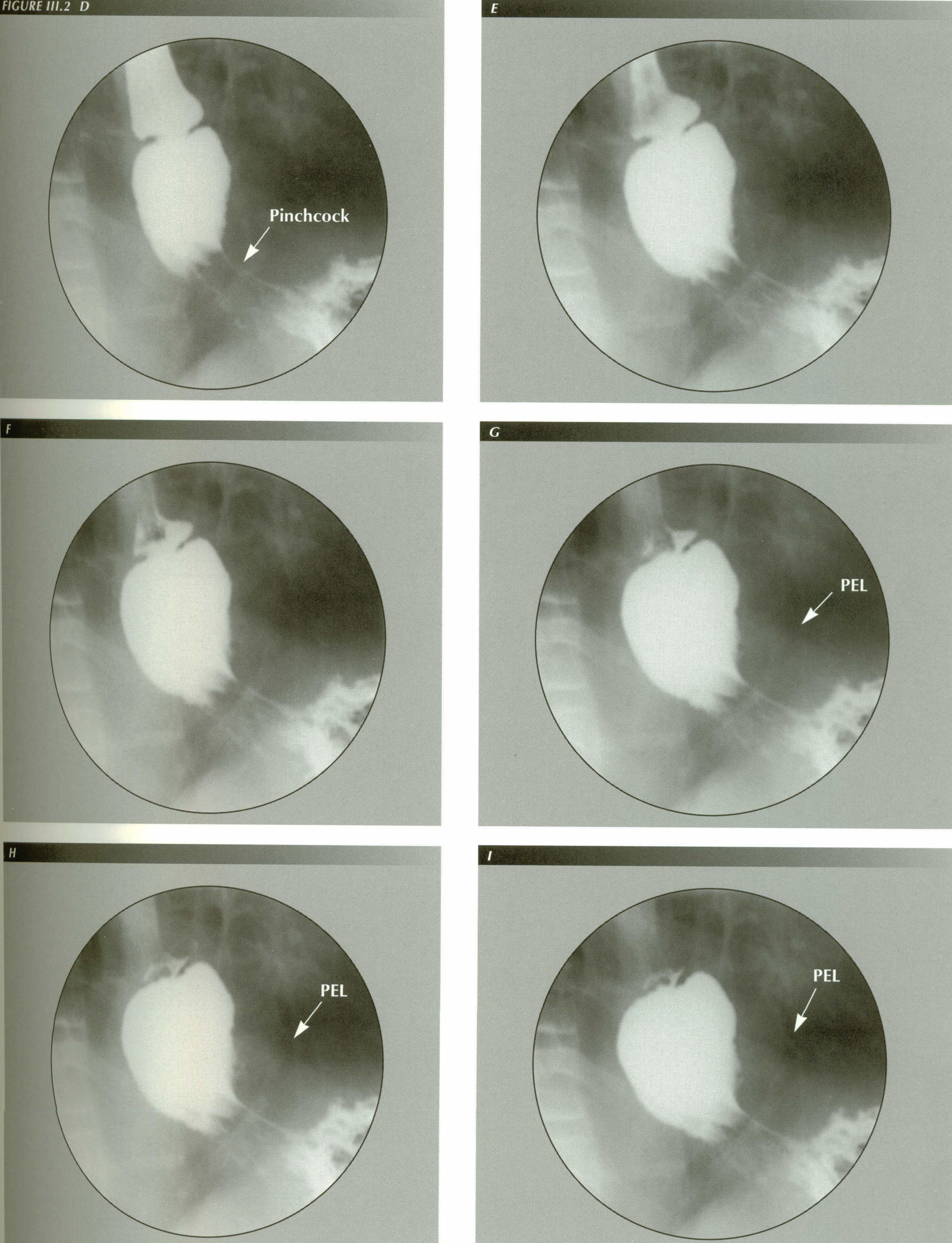

Click for larger image
Click image for larger version

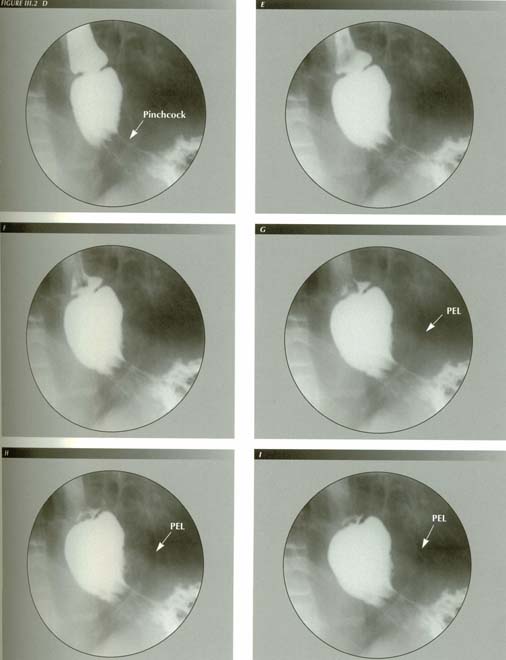

Click for larger image
Click image for larger version

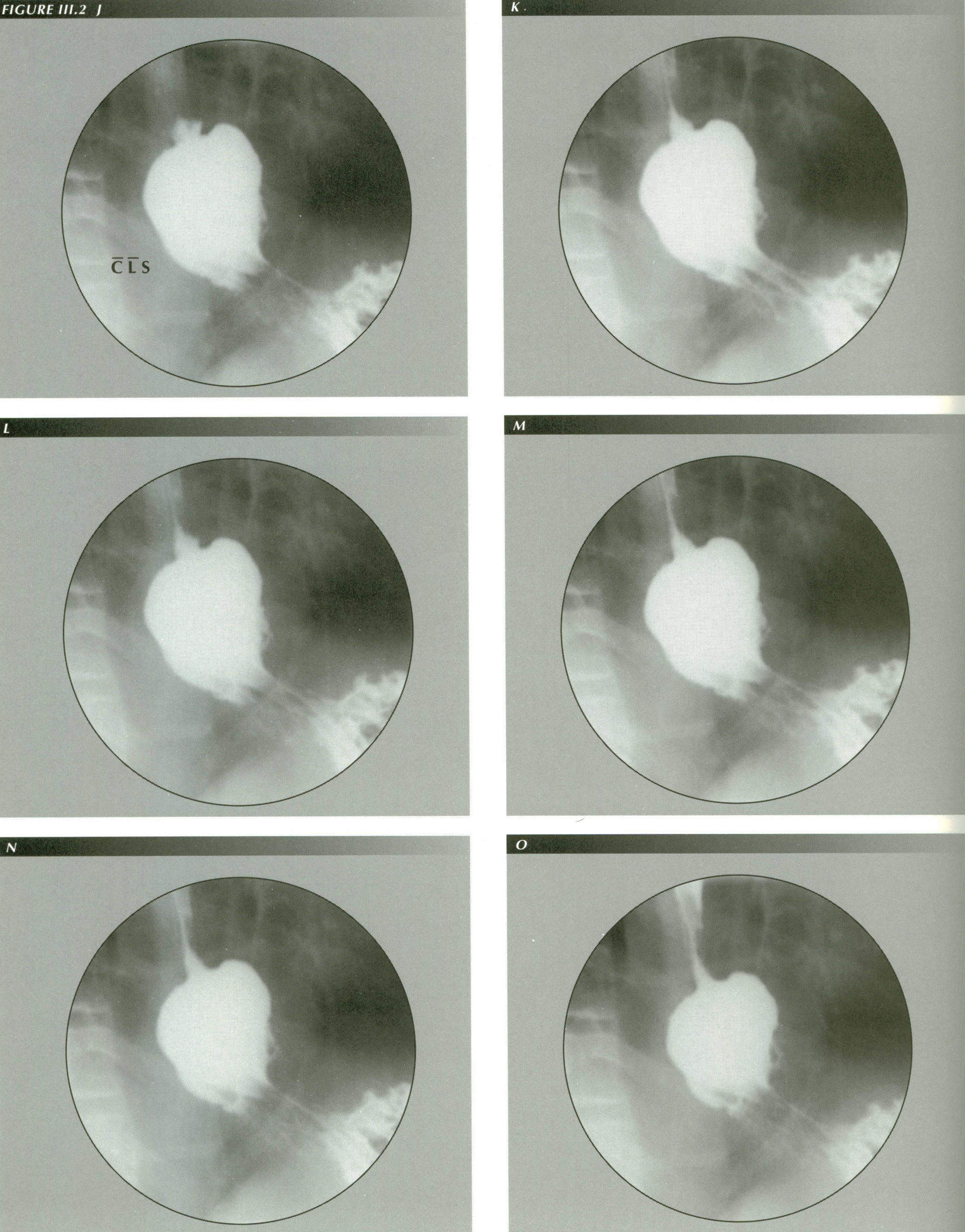

Click for larger image
Click image for larger version

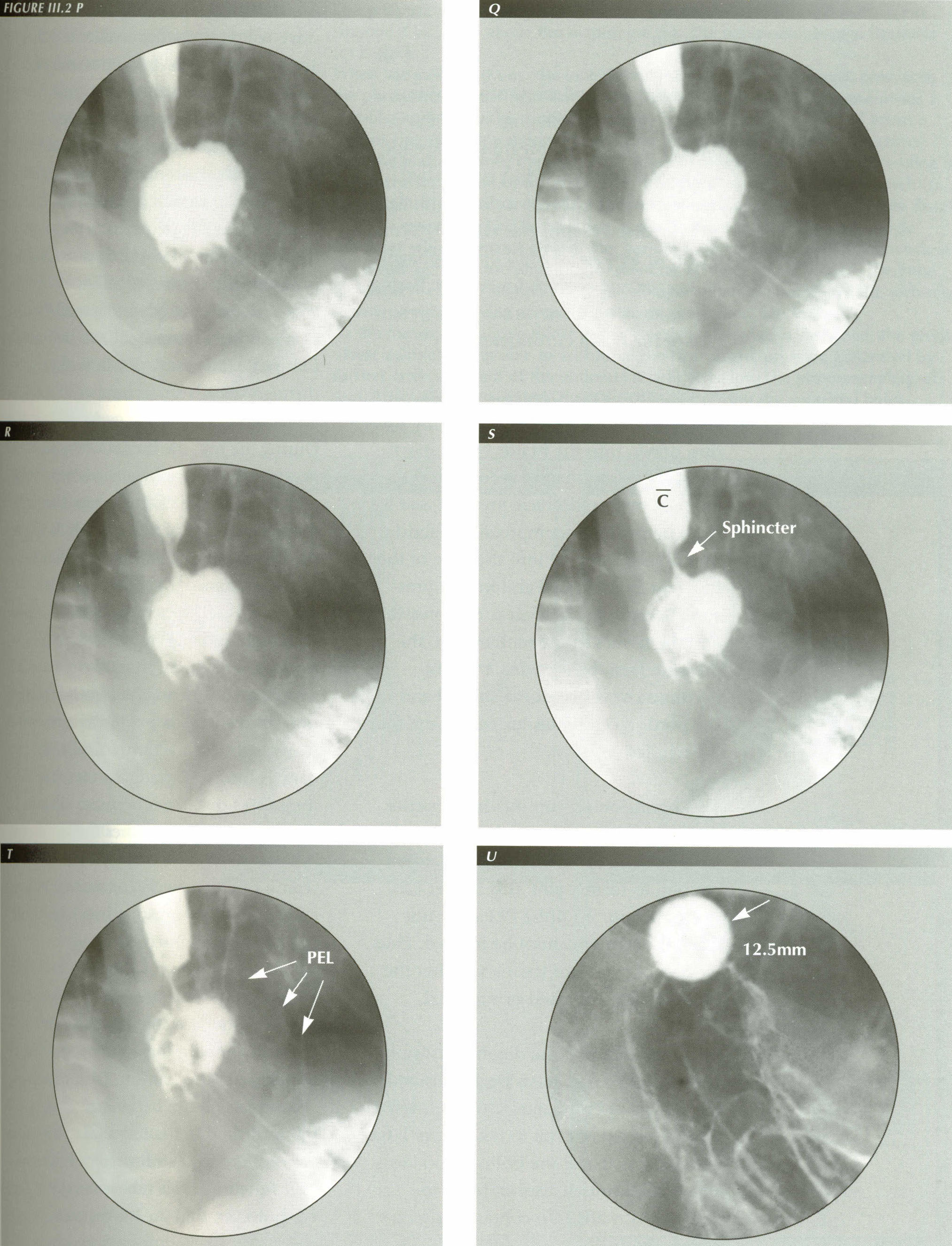

Click for larger image
Click image for larger version

This is what is happening: When the patient takes a deep breath the phrenoesophageal ligament (PEL) is stretched between its attachment to the diaphragm and the distal esophagus. The PEL forms a "skirt" or tent attached to the esophagus at its apex and with its lower edge flaring out to its attachment on the inferior surface of the hiatal circumference.

As the intrathoracic pressure builds with straining against a closed glottis, the fundus, drawn into the hiatus by its attachment to the esophagus, is collapsed: a.) laterally by intrathoracic pressure and b.) from below by (incompressible) abdominal tissues crowded into the base of the PEL tent by increased abdominal pressure. Because thoracic air is compressible and the tissues in the tent are not, the pressure from below wins, the tent becomes convex or dome shaped and the portion of the fundus within the tent is occluded.

This occlusion sets up the distal barrier that arrests the bolus when it arrives. Note that 1.) If the PEL is not stretched enough to form a tent, this barrier cannot be set up. 2.) If the PEL does not exist, the barrier cannot be formed. Thus we have a means of testing whether the PEL is intact but stretched or ruptured.

The obstruction at the diaphragm is not obvious until peristalsis begins distending the distal esophagus. One reason for telling the patient not to take a very large mouthful is that if the bolus is too large the circular muscle cannot bring the esophageal walls into contact and peristalsis aborts.

Assuming this is not true, a peristaltic wave will form in the cervical esophagus and push the fluid barium ahead of it. As it moves down the esophagus the lumen distends because the same amount of fluid is now contained in a shorter tube. Distention of the lumen (and circular muscle) is the stimulus to LMC,(2) so, as the peristaltic wave moves distally, the circular muscle ahead of it is progressively distended and the LM progressively contracted. A maximal distention produces a maximal LM contraction that pulls the gastric pouch farther through the hiatus.

During the test, the fundus of the stomach rises above the diaphragm synchronously with the advance of the p-wave. Despite the transtraction of the stomach through the hiatus, no esophageal redundancy appears because LM is shortening it.

Although, judging from manometric tracings, one might think the p-wave was simply an advancing ring of CM contraction, in reality it is a complex advancing cone of CM contraction. Initially, the cone is long and gradually tapering. As it progresses distally, it becomes shorter so that by the time it reaches the sphincter it has shortened to a ring. While the region of CM actively contracting is 8-10 cm or more, a corresponding region of LM can be presumed activated.

At this point there are two almost turnip shaped "pouches" base to base. The ancients thought these were some kind of sphincter mechanism. Distinguished anatomists' names became attached to them furthering the impression that they were anatomical structures with specialized functions. It is now generally accepted, however, that the lower pouch is gastric fundus and not a "fore-stomach." The upper, of course, is the "phrenic ampulla." Unlike the "vormagen," the phrenic ampulla is always considered a separate anatomical element of the esophagus and, as such, teleological thinking presumes it should have a distinct function, presumably sphincteric.

Click for larger image
Click image for larger version

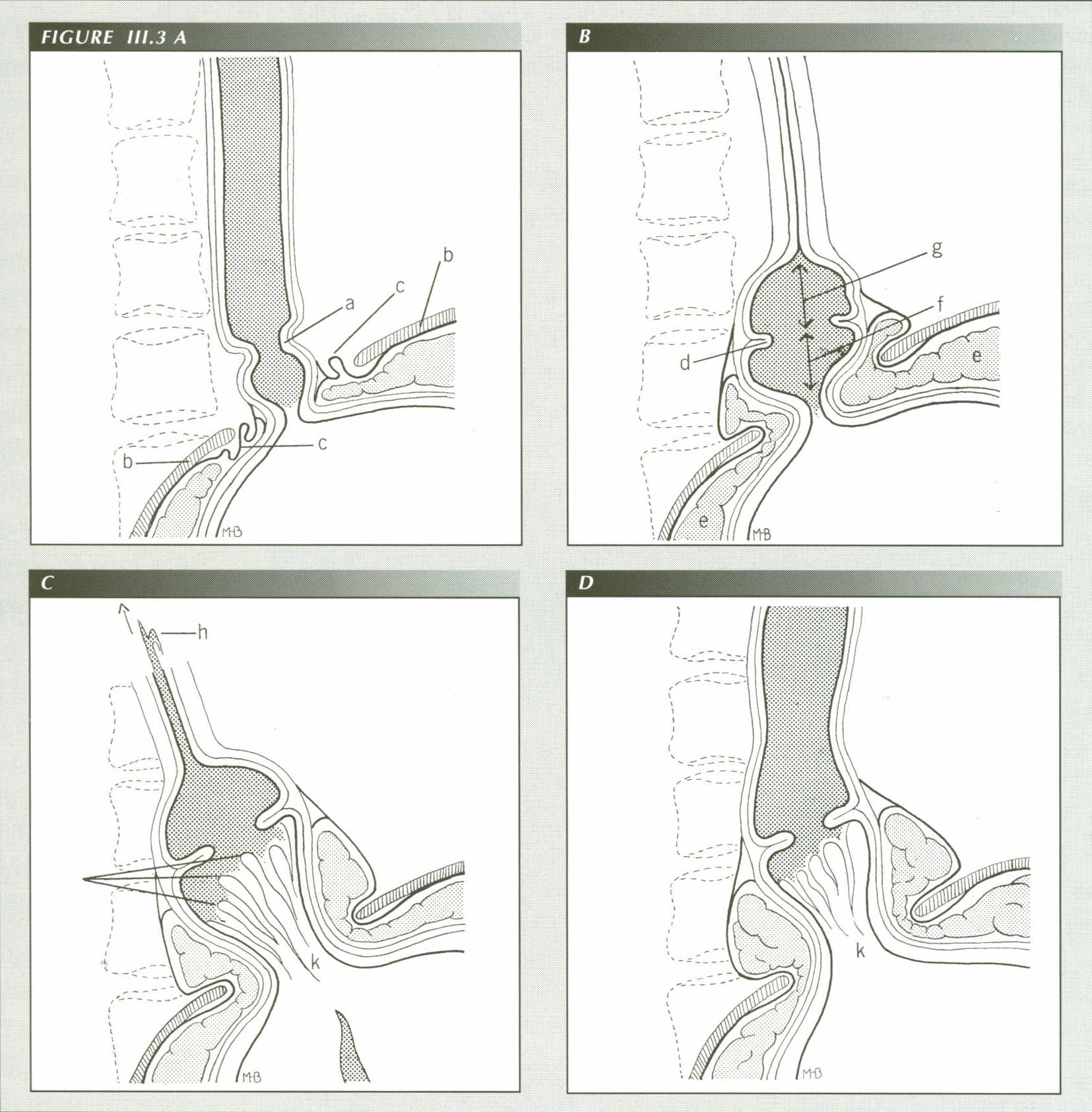

(A) The patient is swallowing barium in the normal fashion. The sphincter (a) is situated 1 to 2 cm. above the diaphragm (b). The phrenoesophageal ligament (c) is slack (B) When the patient strains, the longitudinal muscle of the esophagus contracts, the phrenoesophageal ligament is retracted above the diaphragm and forms a tent-like enclosure. The esophageal mucosa becomes redundant and forms a web or ring (d). Intra-abdominal pressure forces loosely attached structures near the hiatus (e) into the tent of the phrenoesophageal ligament, distending it and at the same time compressing the “herniated” segment of the stomach (f). Meanwhile a peristaltic wave has formed, progressing as far as is possible distally in the esophagus and terminating at the lower margin of the physiologic sphincter which remains closed. The barium trapped between the pinchcock at the diaphram and the physiologic sphincter is the “captive bolus.” The zone (g) below the lower margin of the physioloic sphincter and above the web represents a region having unique physiologic properties. See text. (C) As the maximal straining effort of the Valsalva maneuver is sustained, the physiologic sphincter is unable to withstand the hydrostatic pressure generated by further encroachment of the abdominal structure into the phrenoesophageal tent. This results in proximal ejection of a jet (h) from the captured bolus. Reprinted from Stiennon, O. Arthur, AJR 99:223-32 19 with permission
There is a simple reason for the phrenic ampulla: it is at the end of the esophagus. A distal obstruction means that the bolus initially occupying most of the body of the organ must be contained in the distal few centimeters when the p-wave milks it there. Thus the region is passively dilated. The same segment that is now ampullary in shape can be tubular a moment later and trumpet shaped after that. When inflated by double contrast techniques, this region is no more distensible than others. Its upper margin is pointed because it is in the LES. Its opposite end is flat-topped because the plane of the LER defines it.

When the p-wave reaches this point, all activity stops. The obstruction persists, the p-wave has reached the end of its travel and the bolus is trapped between the two. That this condition may persist since the patient can maintain the Valsalva effort tells us something. The now ring-like p-wave, without any auxiliary support, is entirely capable of containing the bolus against the considerable hydraulic pressure of the tissues being forced into the tent of PER like a thumb on a bulb syringe. It has become the sphincter. By now high above the diaphragm, there are no other sphincter candidates in the region.







Lessons of the captive bolus test

These simple mechanics also explain a great deal about the GE junction, sphincters and hiatal hernias. First, it explains why there is sometimes a pinchcock-like mechanism at the diaphragm and why it is sometimes lacking: The subdiaphragmatic soft tissues crowding into the tent-like PEL collapse the tube of gastric fundus drawn into the tent by contraction of the LM. The barium column, therefore, appears "pinched" or occluded.

Some have supposed that it was the diaphragm itself that caused this constriction. However, the pinch effect is not limited to the level of the diaphragm - the diaphragm is only a few millimeters thick - but extends both above and below the diaphragm.

As Hayward has emphasized, the PEL is an exceedingly elastic structure ". . . rich in elastic fibers" that " . . . if divided near the esophagus . . . may be taken right up into the adventitia of the esophagus and vanish." If the PEL is not stretched or elongated, no tent will erect and there is no pinchcock. Therefore, a CB is itself a sign of hiatus hernia (HH) because that is what a sliding HH is - a stretched, elongated PEL. The reason it is a sliding HH, is that an intact, elastic PEL provides the reducing force. LMC stretches the PEL and pulls a tube or pouch of fundus above the hiatus; the elastic recoil of the PEL reduces the HH when LMC stops.

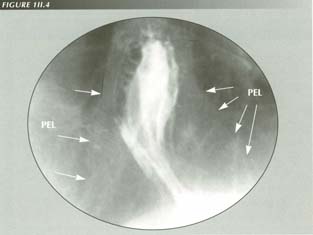

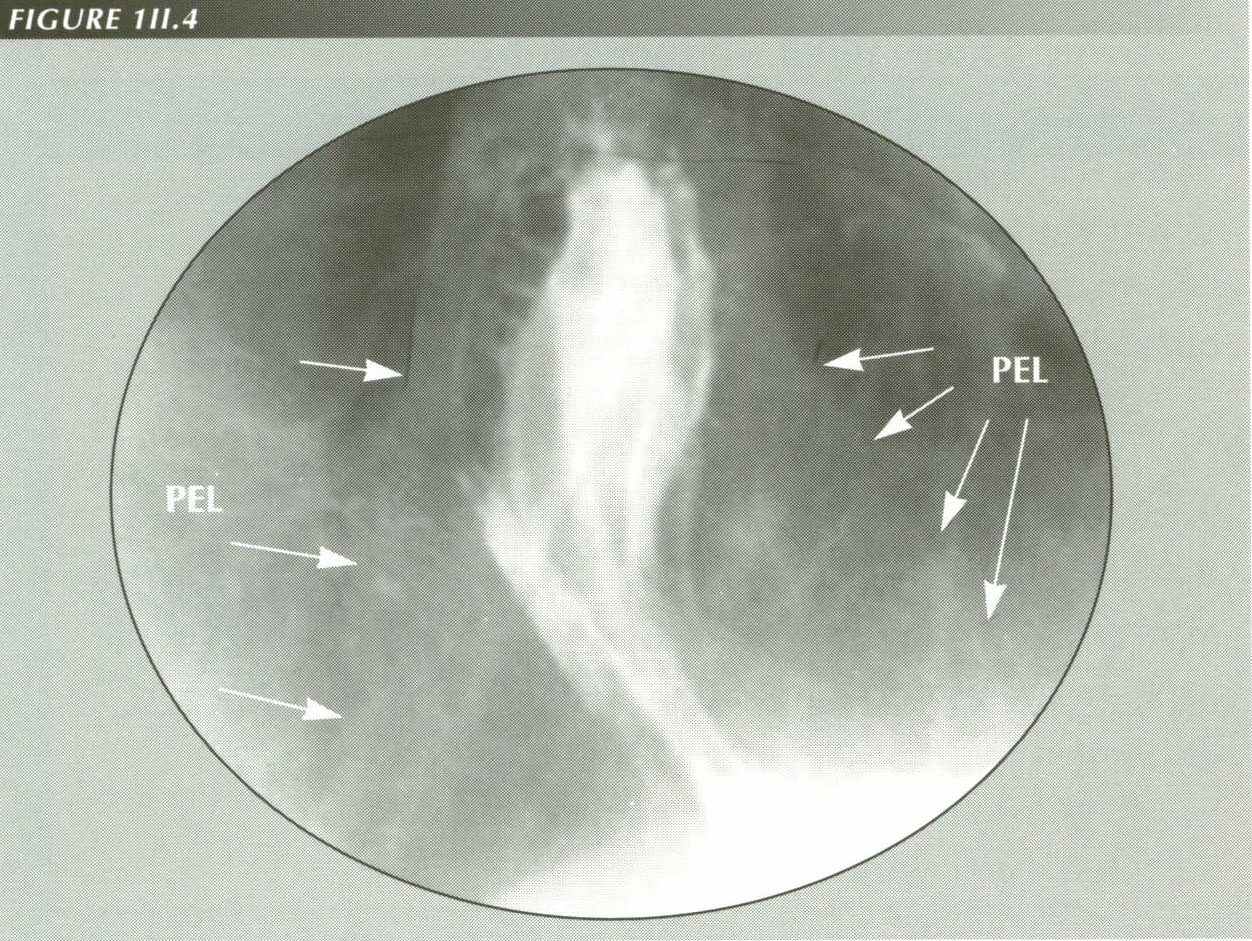

Click for larger image
Click image for larger version

The pinchcock at the diaphragm: the costriction is actually well above the diaphragm and obviously much thicker than the diaphragm. On this lighly exposed film, one can just make out the bell-like tent of the PEL which, by constraining mesentery protruding through the hiatus, chokes off the fundus attached at the apex.
Of course, if the PEL is stretched beyond its elastic limits or actually ruptures, we can predict that a HH will not be self-reducing. And that is exactly what happens. The HH also can become larger because the PEL is no longer a limitation on its size. If the PEL ruptures there is no pinchcock. Abdominal soft tissues can slide into the chest alongside the herniated fundus but, as they are unconstrained, they cannot exert enough pressure to pinch off the fundus.

Is the pinchcock a defense against reflux? No. If a patient with a diaphragmatic pinchcock has a successful HH repair, the pinchcock will disappear. It is illogical, therefore, to postulate as a normal antireflux mechanism a diaphragmatic pinchcock that depends on a pathological set of circumstances and that vanishes when the pathology is removed. This tells us that the pinchcock at the diaphragm can have nothing to do with the prevention of reflux. It is simply an anatomical pattern that occurs when the PEL is stretched but not ruptured.

It is generally supposed that a Valsalva test provokes a sliding HH by increasing intra-abdominal pressure. However, it is not the increased intra-abdominal pressure per se but the maximal LMC provoked by swallowing against the resistance of the pinchcock which draws the fundus above the diaphragm.

LMC, by the shortening esophagus, causes mucosal redundancy. As there is a good deal of elasticity in esophageal mucosa, signs of redundancy do not begin to appear until the esophagus has shortened 3 to 4 cm. Thereafter, the redundant mucosa may form a fold or accordion pleat. This is the "Schatzki" ring.

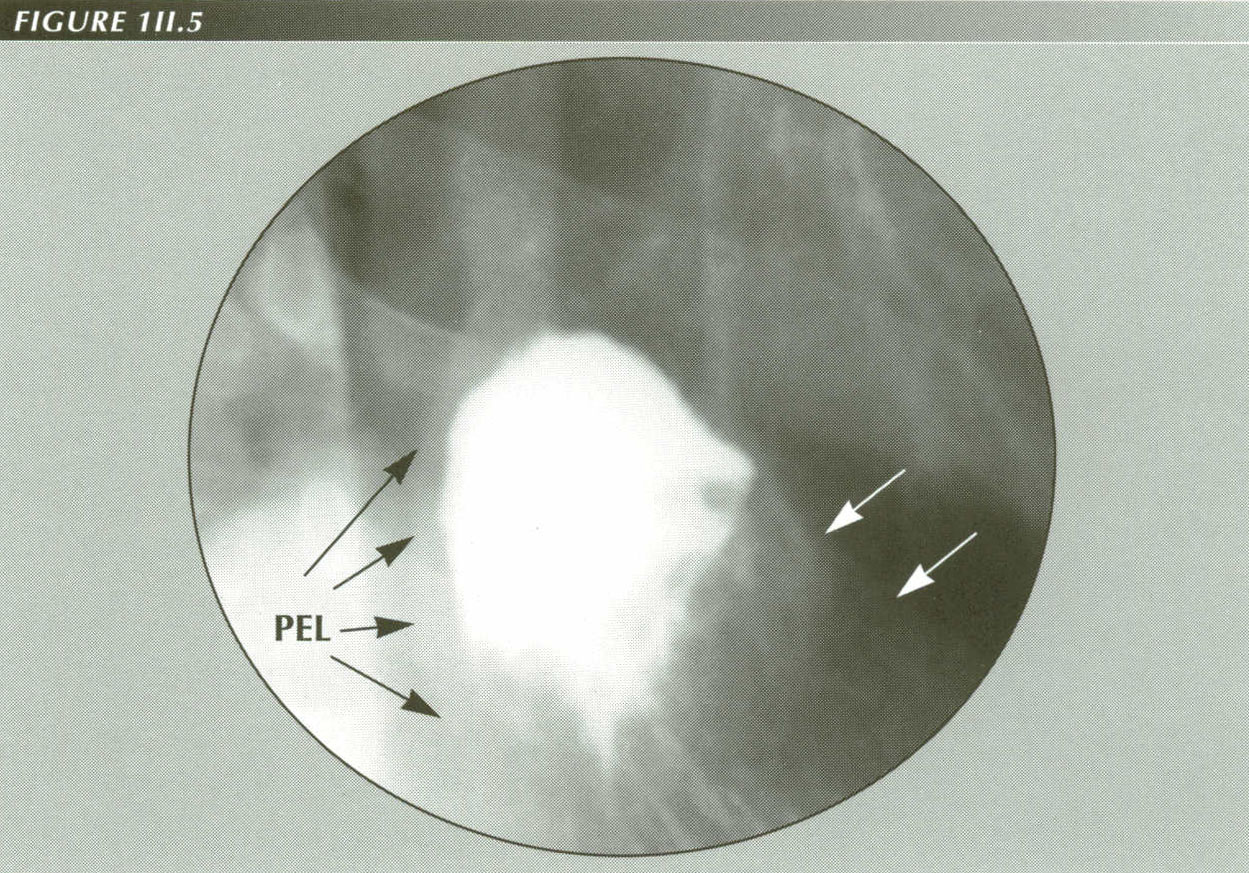

Click for larger image
Click image for larger version

Omentum crowding into the PEL tent. Note the PEL insertion at the sphincter. Although the rest of the PEL is largely invisible, it can be appreciated by the way it constrains the inra diaphragmatic tissues after they protrude through the hiatus.
Even before the fold forms, however, it is often possible to identify the mucosal junction of esophagus and stomach by 1 mm notches, sometimes called the notches of McLean,(3) at the precise location that the ring will form. Once either is identified, it is easy to see that the esophagus is shortening as the p-wave proceeds distally and that the ring deepens as the esophagus shortens.

Why isn't the "ampulla" obliterated by the advance of the peristaltic wave? Because peristalsis stops at the sphincter.





Three results

From these observations, we can establish three results that are neither common knowledge nor consistent with early speculations as to the function of the phrenic ampulla.

The phrenic ampulla does not have any sphincter function

The ampullary dilatation is merely a ballooning of a segment that is incapable of peristalsis.

Most important, however, is this demonstration that the p-wave stops at the lower edge of the sphincter - which is not necessarily the end of the esophagus. It is well known that there is normally no peristalsis in the gastric fundus, but the existence of an aperistaltic esophageal segment, to the best of my knowledge, has not been observed either radiologically or manometrically. This fact will assume importance when we consider "achalasia."

The pinchcock may be forced at times, but usually the sphincter is first to yield so that a retrograde jet of barium squirts up into the relaxed esophagus proximal to the sphincter. The ease and rapidity (the jet may reach the height of the aortic arch in .25 seconds) with which the proximal esophagus then fills demonstrates the lack of tone in the body of the esophagus in the wake of the p-wave - as we also know from the fall in the manometric pressure tracing behind the p-wave.

Also illustrated is a unique aspect of LM contraction: unlike CM contraction, it does not relax in the wake of the p-wave. Instead, the p-wave appears to latch the LM as it passes through it. Only when the p-wave reaches the sphincter does the LM relax.

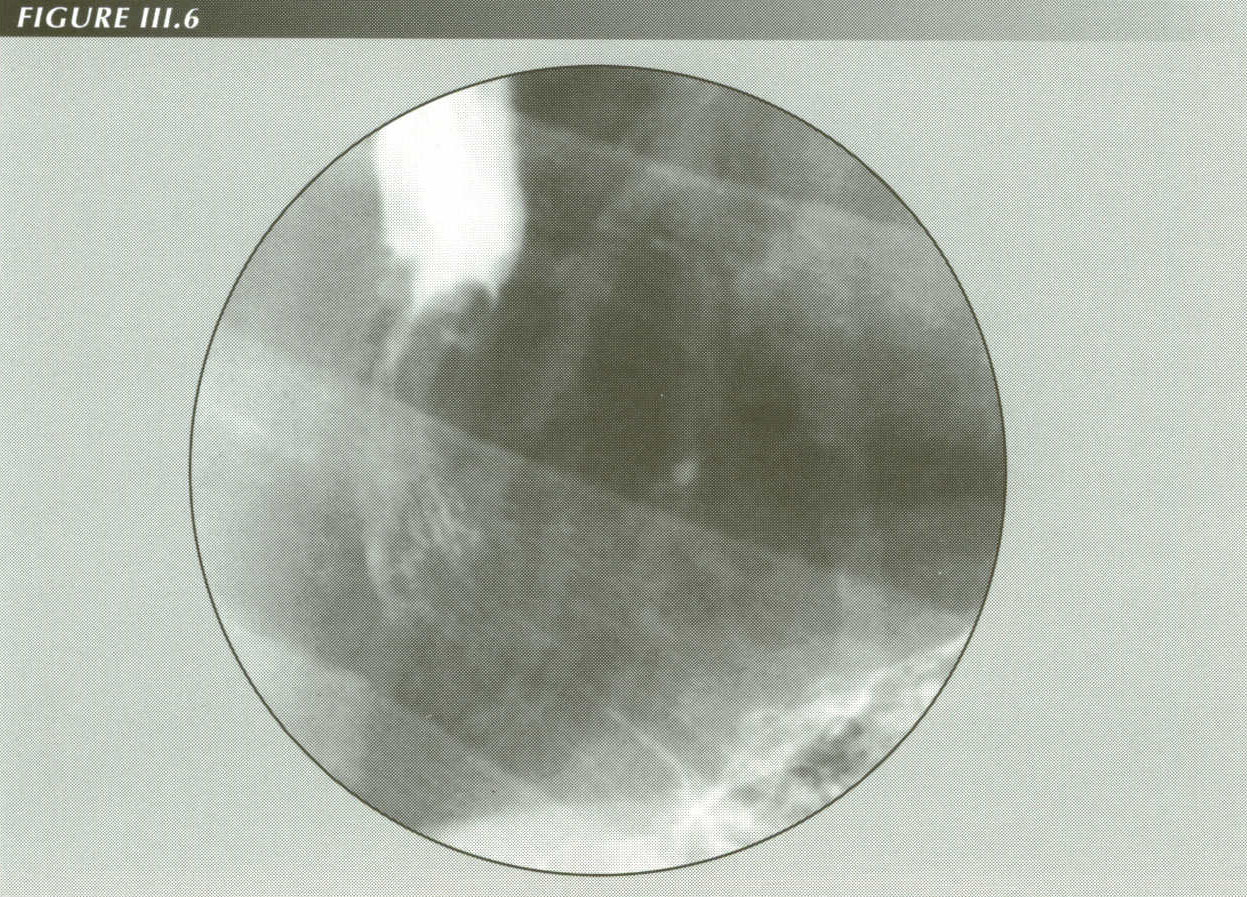

Click for larger image
Click image for larger version

Long PEL:
Although the PEL is difficult or impossible to see in most cases, it produces effects which are unmistakable. Here a Valsalva effort collapses the stomach in the PEL distal to its attachement because hydro-static pressure is confined to the (in this case) tubular PEL tent. This extreme example shows the mechanism responsible for the “empty segment.” It has no part in preventing reflux. Tissues slowly crowding into the PEL have been mistaken for prolapsing mosa
Within 1.5 seconds after the sphincter yields, the proximal esophagus is refilled from below. This presents an excellent opportunity to view the sphincter, still contracted but forced open in the initial stage of this retrograde filling. It generally measures 1 cm a few mm - far less that the 3-4.5 cm that manometry has indicated.

The bulb syringe effect of the PEL tent

The yielding of the sphincter is not due to a further advance of the p-wave, but to further encroachment on the space within the PE tent by abdominal tissues crowding into it from below. These act as a piston to create the necessary hydrostatic pressure to force the bolus back through the sphincter.

If the observer's attention is on the body of the esophagus, he may have the impression of reverse peristalsis, however, this is not so. Cine-films of this phenomenon centered on the gastric pouch(4) show that it collapses in its axial direction before its transverse dimension decreases appreciably - as though a piston were moving up from below ejecting barium ahead of it.

When tracings of successive frames of a cine strip of the process are superimposed, it can be seen that, whereas the outline of upper pouch and sphincter remains nearly constant, the outline of the gastric pouch moves proximally. Calling this a piston-like action is scarcely accurate. It is an extremely complex event with a torus of abdominal soft tissues rolling up into the PEL tent. The net effect, however, is a piston or bulb syringe-like action.

It is doubtful that this process has any significant role in, say, causing GE reflux. If it occurred during swallowing, no acid would be retrojected. It is also noteworthy that the pinchcock zone is much wider than both the diaphragm and the physiologic sphincter. 1, 2 or 3 prominent gastric folds are usually seen in the constricted area. If only one is seen, the resemblance to the bird beak, described as characteristic of achalasia, is perfect.





Locating the sphincter

The lower esophagus must exhibit either McLean notches or a LER to demonstrate that the p-wave does not extend to the end of the esophagus but stops at the lower sphincter margin. About 3 cm is the maximum distance between the ring and the lower edge of the sphincter I have encountered. Usually this distance is .5 to 1.5 cm.

One cannot help wondering why the sphincter is not at the very end of the esophagus. It is a common observation that, except in most unusual circumstances, there is no peristalsis in the fundus of the stomach. The gastric peristaltic wave starts high on the greater curvature of the stomach. That the esophageal wave stops short of the stomach would have been difficult to anticipate. There is no manometric evidence of an aperistaltic esophageal zone. The aperistaltic region may act as the opening wedge of the sphincter during belching, vomiting and reflux when it flares to its trumpet shape.

If the patient is still able to sustain the Valsalva effort, a new peristaltic wave will form and again force the regurgitated barium into the double compartment between sphincter and pinchcock. Repeated cycles of this nature may follow without so much as a drop of barium escaping through the pinchcock.

Antireflux significance

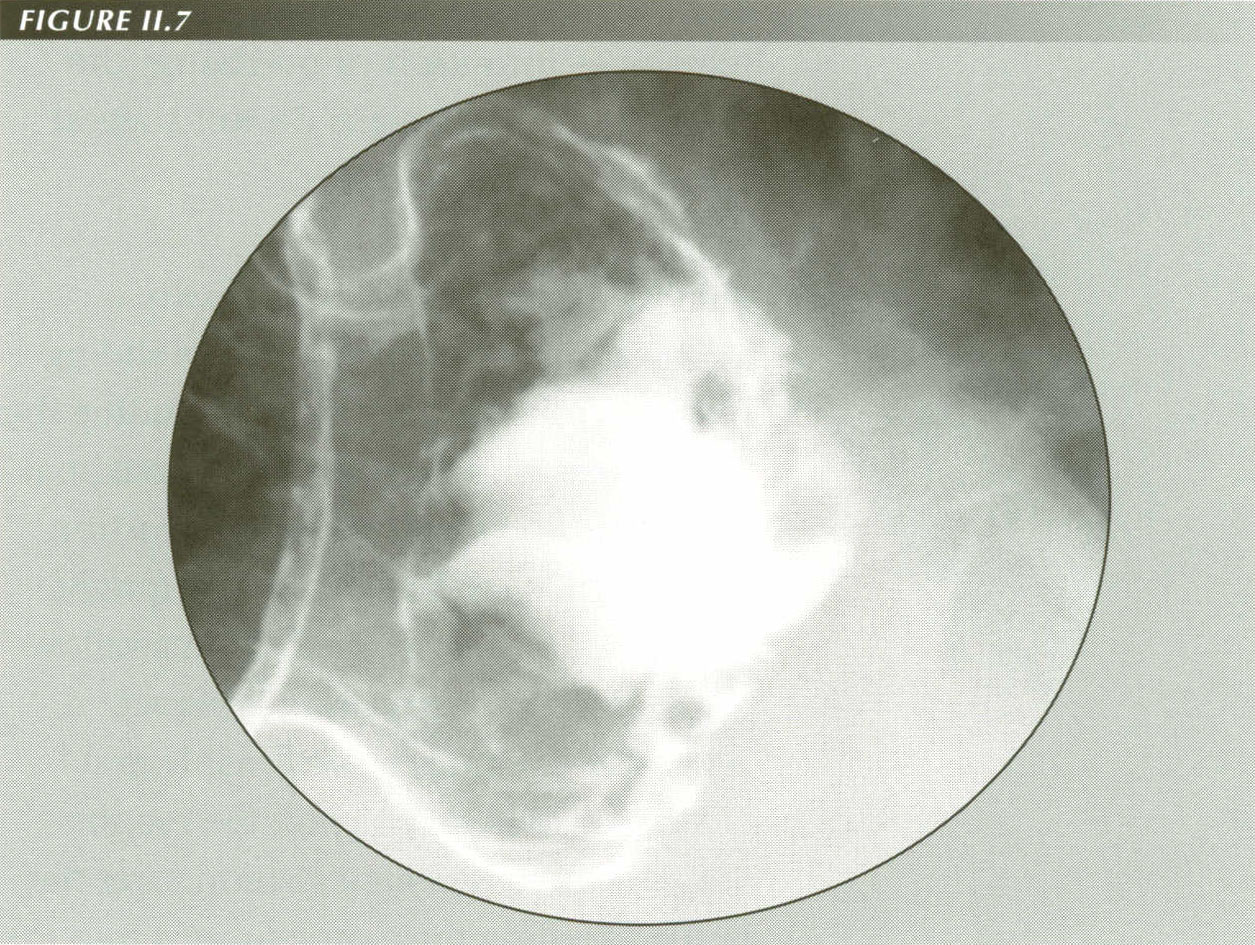

Click for larger image
Click image for larger version

If one studies the captive bolus during its arrested phase, it is easy to see that:

There is no angle of His in sight.

The right crus of the diaphragm is well below the area of interest.

There is no subphrenic esophagus.

The area of muscular thickening at the GE junction described by Liebermann-Meffert et al.(5),(6) is 9-21 mm below the squamo-columnar junction - which, as we know, is exactly at the LER. This would place the thickening in the upper portion of the "herniated" (actually retracted) fundus where it clearly is not playing any part in the obstructing mechanism or even influencing the shape of the fundus.

The sling fibers of the stomach are also completely overpowered by other forces and nowhere in evidence.

Yet, despite the absence of any of the classical configurations invoked as antireflux mechanisms, the unaided sphincter is doing a magnificent job of remaining competent. Even the considerable pressure built up by upper abdominal tissues crowding piston-like into the confining tent of PEL does not force it.





The illusion of prolapse

Turning attention again to the incursion of a torus of abdominal soft tissues into the base of the PEL tent, we can see that as this occurs, mucosal folds appear to be moving proximally into the gastric pouch, but this is simply because its walls are coming into contact. If only the retrograde mucosal margin is noted, it will be mistaken for "retrograde prolapse of gastric mucosa"(7),(8),(9) into the esophagus unless morphological details are carefully analyzed.

Of course, all of this is happening in a relatively few seconds and, without the aid of cinefluoroscopy or a sequence camera, analysis of the process is difficult. Prolapse of esophageal mucosa into the fundus has been reported(10),(11) repeatedly, but it is very unlikely that this occurs. If it did, there would be no reason for a ring to form. For some reason, the enteric mucosa, that is so loosely attached to the wall in the esophagus, is firmly attached in the fundus. Instead, the motion of the torus into the tent simulates sliding or prolapsing mucosa - gastric when it is rising and esophageal when it is reducing.

Strange formations are seen at the end of the CB test when the pouch of fundus above the diaphragm begins to return to its normal infradiaphragmatic position. As mentioned, the PEL provides the restoring force. It is applied at the apex, rather than the base of the retracted pouch of fundus. Therefore the soft tissues - both the fundic pouch and supporting omentum, etc. - are pushed into the abdomen. Like a crowd of people escaping a theater fire, these tissues tend to overrun the exit. The result is the interesting shapes aptly described as "arum lily," "Jack-in-the-Pulpit," "Saturn ring" or "wing sign" as the fundic pouch telescopes into itself or overhangs the diaphragm. These signs do not suggest any special disease states.

Finally, we are able to explain why a Valsalva maneuver demonstrates sliding hiatus hernias. It does so by occluding the alimentary tube thus provoking maximal peristalsis and maximal LM contraction. With normal swallowing in the upright position, LMC is minimal. With swallowing against an obstruction, however, peristalsis becomes more forcible and LM contraction acts to pull the esophagogastric tube, stocking fashion, over the bolus pulling the gastric fundus into the chest in the process. In a subsequent chapter a more extensive proof of the cause of hiatus hernias will be elaborated.





SUMMARY

A detailed study of the minutiae of the captive bolus phenomenon yields results that we can use in the proof of many propositions throughout this presentation. Among them the following:

The LM shortens as peristalsis proceeds down the esophagus.

There is an aperistaltic segment that corresponds to the phrenic ampulla and accounts for its formation.

The elasticity of the phrenoesophageal ligament is the restoring force in sliding HH. The size of the sliding HH is a measure of the stretch of which the PEL is capable.

The 2-pouch appearance is explained.

The "Saturn ring," "arum lily" and "wing signs" are stages in the reduction of a sliding HH.

Retrograde prolapse of gastric mucosa and orthograde prolapse of esophageal mucosa are misinterpretations.

The pinchcock at the diaphragm is not due to the diaphragm, is not a part of the anti-reflux mechanism and could actually cause reflux.

The physiologic sphincter is less than a third the length it is judged to be manometrically.

The LES is not only highly competent in the face of extreme retrograde pressure, but is the sole anti-reflux protection of the esophagus. It is present and functioning when there is no evidence of an angle of His, subphrenic esophageal segment, pouting of the gastric or esophageal mucosa, valve of Guberoff, etc. In the next chapter I will discuss some more fundamental misconceptions about the sphincter.







References




Last Updated July 26, 2007 by David PJ Stiennon

1. 1. Stiennon, O. Arthur, The "Captive Bolus" test and the pinchcock at the diaphragm: an esophageal pump and some non-diseases of the esophagus. Am. J. Roentgenol. Tad. Therapy and Nuclear Med. 99:223-32, 1967.

2. 2. Christensen, James and Lund, Gordon, Esophageal response to distention and electrical stimulation. J. Clin. Invest. 48:408-19, 1969.

3. 3. McLean, C.D.T., Lower esophageal ring or groove. Brit. J. Radiol. 31:472-6, 1958.

4. 4. Stiennon, O. Arthur, 1967, op cit.

5. . Liebermann-Meffert, D., Heberer, M. and Allgower, The muscular counterpart of the lower esophageal sphincter. In: Esophageal Disorders, Eds. DeMeester, Tom R. and Skinner, David B., Raven Press, New York, 1985.

6. . Liebermann, D., Allgower, M., Schmid, P., and Blum, A.L., Muscular equivalent of the lower esophageal sphincter. Gastroenterology 76:31-8, 1979.

7. . Fagan, C.J. and Palmer, E.D., Gastroesophageal retrograde prolapse. Am J. Roentgenol., Rad. Therapy & Nuclear Med. 90:774-7, 1963.

8. . Feldman, M., Retrograde extrusion or prolapse of gastric mucosa into the esophagus. AM. J. Med. Sci. 222:54-60, 1952.

9. . Kerr, Robert M. Hiatal hernia and mucosal prolapse. In: The Esophagus, Ed. Castell, Donald O., Little, Brown and Company, Boston, 1992.

10. . Aldridge, N.H., Transmigration of the lower esophageal mucosa. Radiology 79:692-68, 1962.

11. . Russell, W.J. and Kogure, T., Transmigration or prolapse of esophageal mucosa. Am. J. Roentgenol. Rad. Therapy & Nuclear Med. 92:1017-20, 1964.
